Product Features:
Multiple time settings small lable heat press machine
Bright, large LCD wide a wide viewing angle heat press machine
Heat press machine with self-pressure balancing system
Teflon surface sprayed with theT-shirts heat press machine upper plate
The pneumatic heat press machine automatically press downward with air pressure
The heat press machine powered by an air compressor ( not included)
Heat press machine used for especially small items like trademarks, caps, cups, glasses, balls...
Description:

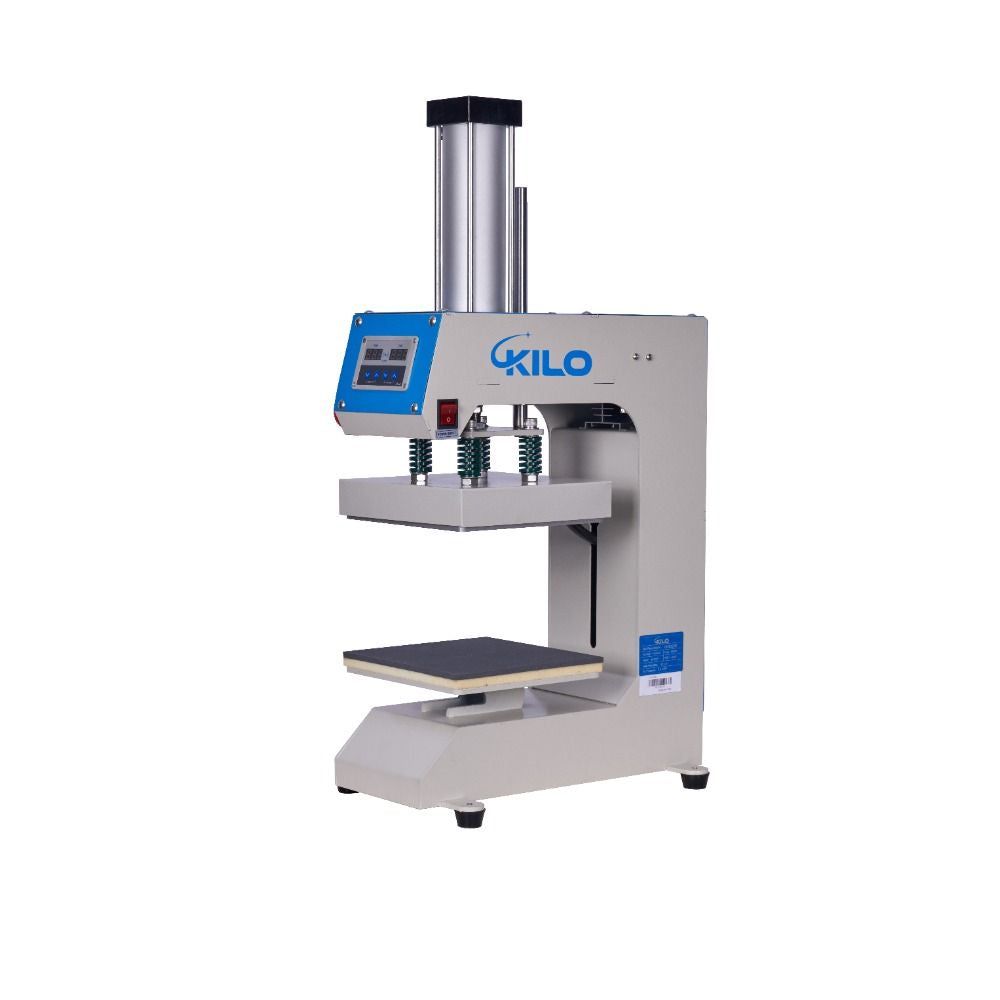

Single Station Pneumatic Heat Press Machine
1. Heat press machine is full digital integrated display control; 2. High accuracy of signal indication when press process is completed; 3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature; 4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts pneumatic drive to press down, greatly reduce labor intensity and improve work efficiency; 5. Teflon surface sprayed 6. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure 7. Generally pressure for 0.4Mpa-0.6Mpa heat printing
Raw Materials Cutting
Raw materials preparing for the production
Laser Cutting
Use laser cutting machine to cut steel plate on raw material
Round Tube Cutting
Cutting the round tube into small spares
Steel Plate Bending
According to the model, bend and shape the raw section steel
Technical Details
| Voltage(V): |
110V/60HZ |
| Power(KW): |
1.2 |
| Temperature(℃): |
0-299 |
| Delaying time(S): |
1-999 |
| G.W.(LB): |
64.0 |
| Packing Size(in): |
18.1'' X 11'' X 30.7'' |
| Accept Thickness: |
Max. 2.36'' Thick Items |
| Heat Plate Size: |
8'' x 8'' (20 x 20cm) |
