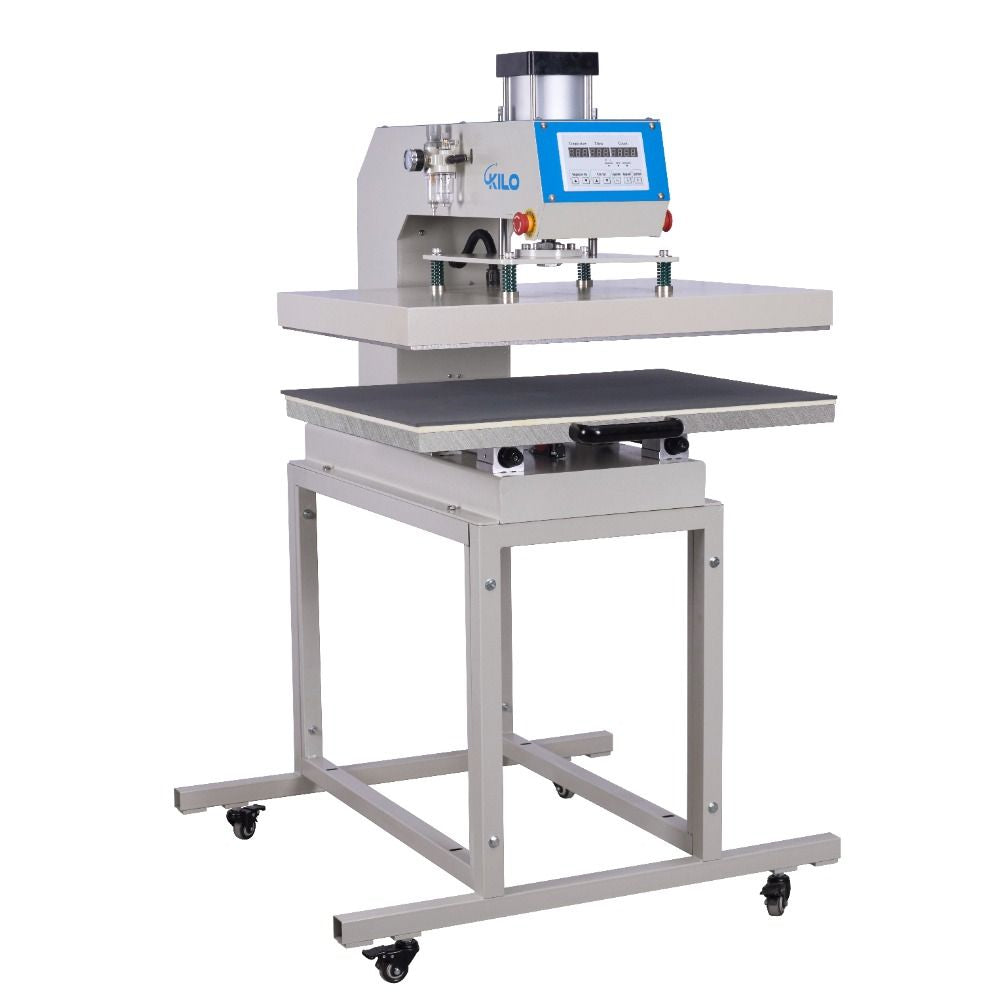

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug)

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug) image 2

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug) image 3

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug) image 4

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug) image 5

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug) image 6

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug) image 7

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug) image 8

24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug)

$3,738.57 $5,606.83

Ask about this product

DESCRIPTION

Product Features:

1. Multiple time settings heat press machine

2. Full digital integrated display control, temperature, time, counting

3. Aluminum heat plate with die casting heating pipe

4. Down-sliding heat plate head design

5. Easily adjust the certain pressure

6. High accuracy of signal indication when press process is completed

7. 2.36'' pressure adjustable range can process a wider range of products.

8. Powered by an air compressor ( not included)

Description:

Product Description

1. Heat press machine is full digital integrated display control;2. High accuracy of signal indication when press process is completed;3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature;4. Heat press machine pressure can be adjusted up to 8kg/cm², It adopts connected track which is stable and convenient for sliding, with high efficiency;5. Special high temperature cloth for hot stamping machine covered6. Lower plate covered with 6MM silicon mat and 1CM sponge to heat even heating pressure 7. Heat press machine is automation print once backside inductive screw touched8. Left and right side bearings parallelly move the heat press machine

dropship 24x32 Large Format Single Station Pneumatic Heat Press Machine 220V,6000W (No Plug)

General Pressure for 0.4Mpa-0.6Mpa Heat Printing

The heat press machine can adjust to different pressure as needed

Different Charge Plug Can Be Available Depends on Customers Requirement

Technical Details

Voltage(V):	220V single phase
Power(KW):	6
Temperature(?):	0-299
Delaying Time(S):	1-999
G.W.(LB):	403.5
Packing size(in'):	45.3'' x 32.3'' x 36.6''
Accept Thickness:	Max. 2.36'' Thick Items
Range of Application:	Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
Heat Plate Size:	24" x 32'' (60 x 80cm)

Time Requirements of Different Materials

Pure cotton	15s-25s
Polyester	40s
Chemical fiber	10s-40s
Pearl board	60s-100s
Metal pendant	60s
Mousepad	50s
Vitrolite	180s
Key ring pendant	100s
Ceramics	180s
Material	Temperature
Pure cotton	356℉-428℉ (180℃-220℃)
Polyester	356℉ (180℃)
Chemical fiber	302℉-356℉ (150℃-180℃)
Pearl board	356℉ (180℃)
Metal pendant	356℉ (180℃)
Mousepad	374℉ (190℃)
Vitrolite	392℉ (200℃)
Ceramics	356℉-428℉ (180℃-220℃)

Air Compressor Details: (Need buy extra)

F.A.D/Max Pressure(m³/Min/MPa):	2.2/0.8
Lubricant Oil (Liter):	10
Voltage:	110V/60HZ, 220V/single phase
Power (KW):	15
Starting Mode:	Variable Frequency Start
Outer Pipe Diameter (inch):	Rp3/4
