Product Features:
1.The heat press machine is digital touch screen controlled,the votaloge is 110V,without plug.
2.Easily adjust the heat press machine certain pressure
3. Heat press machine use Sliding heat plate head design.
4. Best selling heat press model for heat transfer and sublimation
5. Lifetime factory on-line service
6. Large format die cast aluminium base plate
7. Special high temperature cloth for hot stamping machine covered
8. Heat press machine used for cloths Sublimation
9. Heat press machine with optional Infrared positioning makes more sccurate for small items printing
10. High accuracy of signal indication when press process is completed
Description:

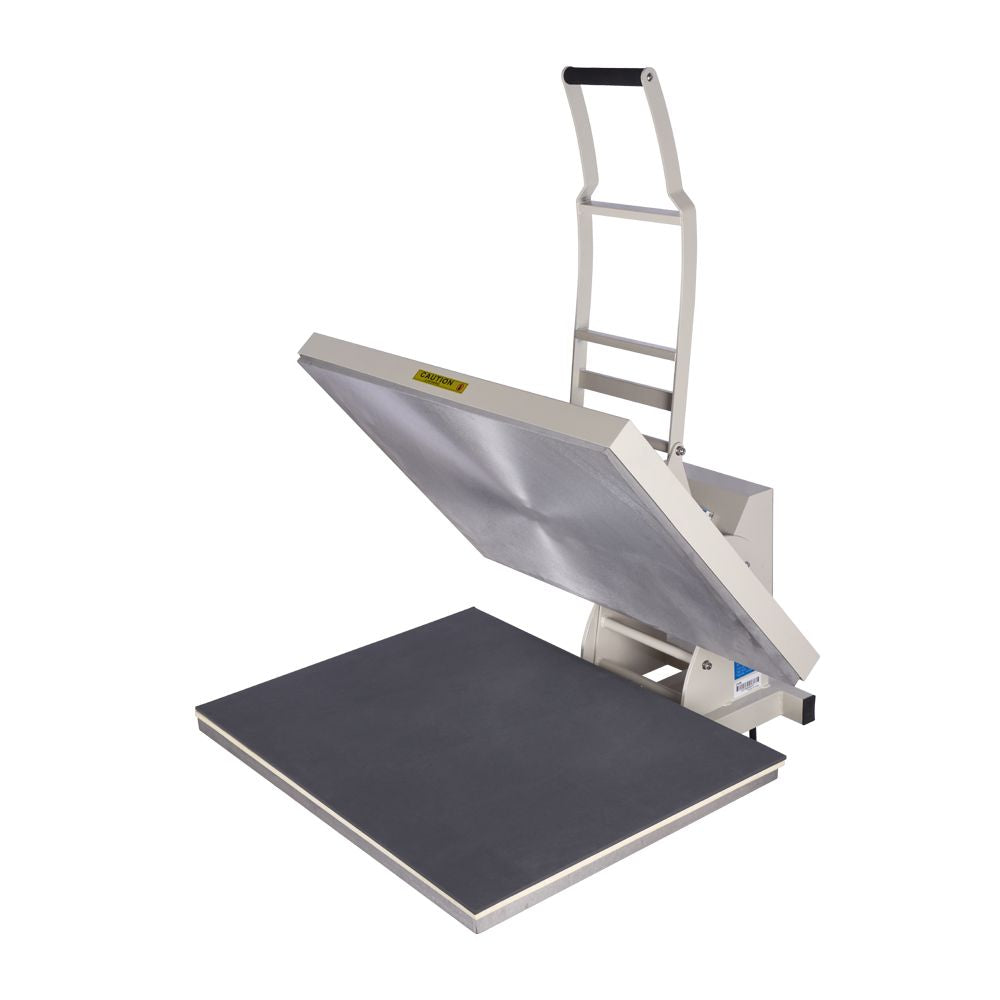

Manual Heat Press Machine
1. Heat press machine suitable for larger area heat transfer press operations2. The heating plate adopts the structure of double pressure rods and double helical buttons, which can adjust the pressure more evenly and more precisely3. The required pressure ensures the good press between the upper and lower plates, with better pressing effect4.For T-shirts, mouse pads, license plates, magnetic material and more5. Special high temperature cloth for hot stamping machine covered6. Large format heat press machine is optional Infrared ray positioning 7. High accuracy of signal indication when press process is completed
High Pressure Manual Heat Press Machine
The heating plate adopts special ultra-precision wire tube technology, which can effectively ensure the temperature Equilibrium and peace;The surface of the heating plate is sprayed with Special high temperature cloth, which can effectively ensure the surface of the heating plate smooth surface, durable;Full digital temperature and time display, temperature error(±2℃);Designed according to human engineering , machine is easy to operate with even pressureOpen and close heating plate, easy to usePressure is adjusted by connecting rod, the adjustment torque is small and the range is large
Large Format Heat Press Machine with Double Pressure Knob to Make Pressure More Uniform
.
Raw Materials Cutting
Raw materials preparing for the production
Laser Cutting
Use laser cutting machine to cut steel plate on raw material
Round Tube Cutting
Cutting the round tube into small spares
Steel Plate Bending
According to the model, bend and shape the raw section steel
Welding
Container Loading
Technical features:
| Voltage(V): |
110V / Single Phase |
| Power(KW): |
4.5 |
| Temperature(℃): |
0-299 |
| Delaying time(S): |
1-999 |
| G.W.(LB): |
205.1 |
| Packing Size(in): |
40.9X33.1X20.9 |
| Accept Thickness: |
Max. 2.36'' Thick Items |
| Range of Application: |
Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: |
24 x 32'' (60 x 80cm) |
| Pure Cotton Time: |
15s-25s |
| Polyester Time: |
40s |
| Chemical Fiber Time: |
10s-40s |
| Pearl Board Time: |
60s-100s |
| Metal Pendant Time: |
60s |
| Mousepad Time: |
50s |
| Vitrolite Time: |
180s |
| Ceramics Time: |
180s |
Temperature Requirements of Different Materials
| Pure cotton |
356℉-428℉ (180℃-220℃) |
| Polyester |
356℉ (180℃) |
| Chemical fiber |
302℉-356℉ (150℃-180℃) |
| Pearl board |
356℉ (180℃) |
| Metal pendant |
356℉ (180℃) |
| Mousepad |
374℉ (190℃) |
| Key ring pendant |
356℉ (180℃) |
| Ceramics |
356℉-428℉ (180℃-220℃) |
